Don't Sweat It During Your Mini Split Installation

What to Expect During a Mini Split Installation (Quick Overview)

Mini split installation what to expect is one of the most common questions homeowners ask before upgrading their home comfort — and the short answer is: a straightforward, low-disruption process that a licensed HVAC team can typically complete in a single day.

Here is a quick breakdown of what the process looks like from start to finish:

No ductwork is required. The system connects through a small 2.5- to 3-inch hole in the wall, and most homeowners are up and running the same day.

That said, there are important details — sizing, electrical requirements, refrigerant handling, permits — that can trip up even the most prepared homeowner. That is exactly what this guide covers.

My name is Mike Townsend, and as a U.S. Army veteran who once managed precision cooling systems for heat-seeking missile heads, I bring that same exacting attention to detail to every mini split installation what to expect conversation I have with Denver-area homeowners. Let us walk you through everything you need to know before, during, and after installation day.

Understanding the Benefits of Ductless Technology in Colorado

Before we dive into the nuts and bolts of the installation, it is important to understand why so many of our neighbors in Denver and the surrounding suburbs are making the switch. A Mini Split AC is not just a fancy air conditioner; it is a high-efficiency heat pump system that provides both cooling in our hot Colorado summers and reliable heating during our snowy winters.

These systems utilize inverter-driven compressors, which act like a dimmer switch rather than a standard on/off light switch. Instead of blasting at 100% capacity and then shutting off, they modulate their speed to maintain a perfectly consistent temperature. This technology is a primary reason why homeowners can see energy savings of 40-50% compared to traditional HVAC systems. Traditional ducted systems can lose up to 30% of their treated air through leaky, uninsulated ductwork—a problem that ductless technology eliminates entirely.

The zoning capabilities are another game-changer. You can have one unit in the master bedroom and another in a sunroom, controlling each independently. Furthermore, these units are whisper-quiet. While a traditional outdoor condenser might roar at 90 decibels, a mini split typically operates between 40 and 65 decibels—roughly the sound of a quiet conversation. With SEER2 ratings reaching up to 28.5 and HSPF2 ratings up to 18.0, these systems offer some of the highest efficiency levels available in April 2026. Plus, because they do not rely on dirty ducts, they significantly improve indoor air quality through multi-stage filtration. If your system ever needs a tune-up to maintain these benefits, professional Mini Split Service is essential to keep the air clean and the machinery efficient.

Mini Split Installation: What to Expect During the Planning Phase

When you schedule a Mini Split Installation Aurora CO, the process begins long before a drill ever touches your wall. The planning phase is where we ensure your system will actually perform as promised.

We start with a Manual J load calculation. This is a scientific way of determining exactly how much heating and cooling your specific room needs based on square footage, window orientation, insulation quality, and even the number of people who usually occupy the space. Sizing is critical; an oversized unit will short-cycle and fail to dehumidify, while an undersized unit will run constantly and wear out prematurely.

Next, we look at unit placement. Indoor units are typically mounted at least six feet from the floor (ideally 7-8 feet) to allow for proper air throw. We look for a spot away from direct sunlight and heat sources like lamps or electronics, which could trick the thermostat.

Electrical requirements are another major consideration for Mini Split Installation Littleton CO. Most mini splits require a dedicated 20-amp, 220-volt circuit. If your home was built before 1990, we may need to assess your electrical panel to ensure it has the capacity for this new load. Finally, we plan for drainage and outdoor unit clearance. The outdoor condenser needs 12-24 inches of unobstructed space on all sides to breathe properly and maintain efficiency.

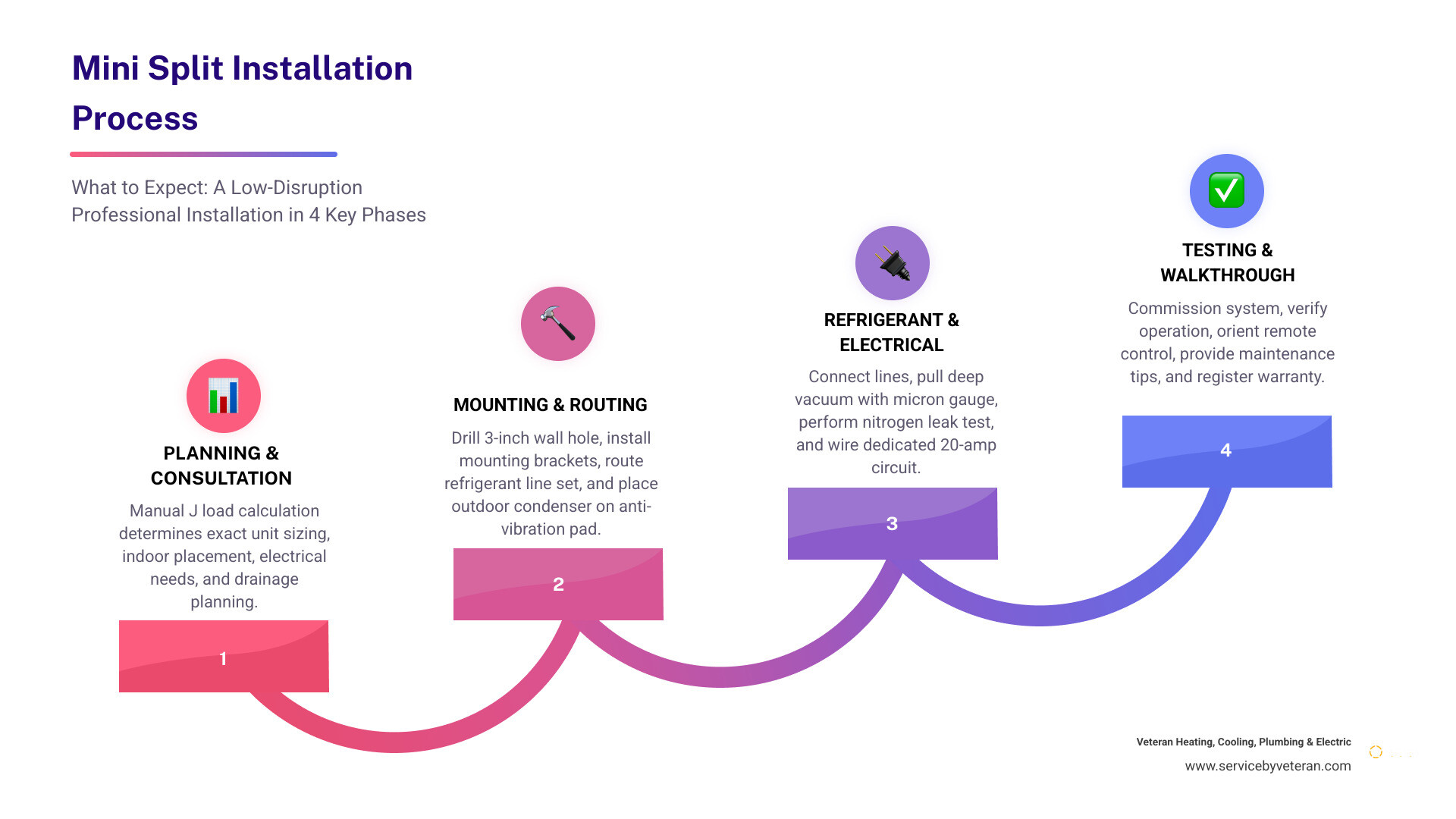

The Step-by-Step Professional Installation Process

Once the plan is set, the actual installation involves several precision steps. First, we secure the mounting bracket for the indoor unit to your wall, ensuring it is perfectly level. This is not just for aesthetics; if the unit is tilted, the condensate water will not drain properly and could leak down your interior wall.

The most "invasive" part of the job is the wall penetration. We use a 3-inch hole saw to create a passage for the refrigerant lines, communication cables, and drain tubing. We always drill this at a slight downward angle toward the exterior to ensure that gravity handles the water drainage effectively.

For a Mini Split Installation Centennial CO, routing the line set is done with extreme care. These copper lines carry the refrigerant, and any sharp kinks could ruin the system's efficiency or cause a leak. Once the lines are connected to both the indoor and outdoor units, we perform a deep vacuum. Using a vacuum pump and a micron gauge, we remove all air and moisture from the lines. We aim for a reading below 500 microns. If moisture is left in the lines, it can turn into acid that destroys the compressor from the inside out. This precision is why professional HVAC Installation is so vital for the longevity of your investment.

Mini Split Installation What to Expect: The Day of the Job

When our team arrives for your Mini Split Installation Castle Rock CO, we treat your home like it is our own. We use drop cloths and wear shoe covers to protect your flooring. We may need to temporarily move furniture to access the mounting area, but we will always put it back exactly where we found it.

Outside, we prepare the condenser site. This usually involves a plastic or concrete pad. We often use anti-vibration pads under the unit's feet to ensure that even the slight hum of the machine does not vibrate through your home's foundation. To keep things looking sharp, we use line set covers (often called "line-hide") on your exterior walls. These protective channels bundle the pipes and wires together and can be painted to match your siding, providing a clean, professional finish that also protects the lines from UV damage and pests.

Mini Split Installation What to Expect: Final Testing and Walkthrough

After the mechanical work is done for your Mini Split Installation Greenwood Village CO, we move into system commissioning. This is where we verify that everything is operating within manufacturer specifications.

We perform a nitrogen pressure test to confirm there are zero leaks in the copper connections. Once we are satisfied, we release the refrigerant into the lines and power the system on. We measure the "delta T"—the temperature difference between the air entering the unit and the air coming out—to ensure the cooling and heating cycles are perfect.

Before we leave, we will provide a full remote control orientation. We will show you how to use the different modes (Cool, Heat, Dry, and Auto), how to set timers, and how to adjust the louvers for the best airflow. We also provide Mini Split Service Denver CO guidance, including how to clean your filters and when to call us for a professional check-up. Finally, we will help you register your warranty to ensure you are covered for the long haul.

Why Professional Mini Split Installation What to Expect Protects Your Home

It can be tempting to look at a "DIY kit" online, but there are significant risks involved. In the United States, federal law requires an EPA 608 certification to handle refrigerant. Releasing refrigerant into the atmosphere is not only environmentally damaging; it can lead to massive fines.

When we handle your Mini Split AC Denver CO, we ensure full electrical code compliance. This includes installing a weather-proof disconnect box near the outdoor unit so power can be safely cut for maintenance. We also handle the mechanical permits required by your local municipality, whether you are in Arvada or Highlands Ranch.

Perhaps most importantly, professional installation validates your manufacturer warranty. Most major brands like Mitsubishi or Daikin will void their 10- or 12-year parts warranty if the system is not installed by a licensed professional. If a DIY installation fails, you could be looking for a Mini Split Repair Littleton CO that costs more than the original installation would have.

Frequently Asked Questions about Mini Split Installation What to Expect

How long does a standard mini split installation take?

For a single-zone system, a professional team can usually finish the job in 4 to 8 hours. If you are installing a multi-zone system with three or four indoor heads, expect the project to take 1 to 2 days. The complexity of the line set runs (such as going through an attic or a crawlspace) and whether we need to upgrade your electrical panel are the biggest factors in the timeline. If you ever find the system isn't cooling as fast as it used to, our Mini Split Service Aurora CO team can perform a quick diagnostic to get it back to peak performance.

How many indoor units do I need for my home?

This depends entirely on your layout and insulation. For a 1,500 square foot house with an open floor plan, you might only need 2 units. However, if the house is divided into several smaller rooms, you might need 3 or 4. We often see homeowners in Mini Split AC Highlands Ranch CO start with one unit in a primary living area and add more later as their needs change.

What kind of maintenance is required after installation?

The most important task is cleaning the filters. You should check them every 2 to 4 weeks, especially if you have pets. Simply pop the front cover, slide the filters out, and rinse them in the sink. Beyond that, you should keep the outdoor unit clear of leaves, snow, and debris. We recommend an annual professional tune-up to check refrigerant levels and clean the coils. If you ever notice an error code or unusual noise, do not hesitate to call for a Mini Split Repair Denver CO to prevent a small issue from becoming a major breakdown.
