Beyond the Breaker: Understanding Your Electrical Service Upgrade Options

Why Your Home's Electrical System May Be Holding You Back

An electrical service upgrade increases your home's electrical capacity by replacing the main components that bring power from the utility into your home. This typically involves upgrading from a 60-amp or 100-amp service to a 200-amp service to meet modern power demands.

Key benefits of an electrical service upgrade include:

• Increased capacity - Power multiple high-demand appliances simultaneously without tripping breakers
• Improved safety - Replace outdated components that may pose fire risks
• Future-proofing - Prepare for electric vehicles, heat pumps, and other electrification needs
• Home value - Increase property value with modern electrical infrastructure
• Code compliance - Meet current electrical safety standards

The process typically involves a 6-7 hour power outage and costs between $2,000-$6,000, depending on your home's needs.

Common signs you need an upgrade:

• Flickering lights when appliances turn on
• Frequently tripping circuit breakers
• Insufficient power for modern appliances
• Planning to add an EV charger, hot tub, or major appliances

As Mike Townsend, my eight years in the U.S. Army taught me the importance of reliable systems. I've seen how an electrical service upgrade is one of the most critical investments you can make for your family's safety and your home's future.

Is Your Home Power-Hungry? Signs You Need an Upgrade

If your lights flicker when the AC kicks on or breakers trip constantly, you might have an overloaded electrical system. But does that mean you need a full electrical service upgrade or just a new panel? Understanding the difference is key. A service upgrade increases the total power coming into your home, while a panel upgrade only improves how that power is distributed inside.

A full electrical service upgrade replaces the main components from the utility line to your panel, increasing your home's total electrical capacity. A panel-only upgrade replaces the distribution box but doesn't increase the total power. Most modern homes need the full service upgrade, which typically costs $1,600 to $3,100+ and requires coordination with the utility. A panel upgrade is simpler, often costing $1,200 to $1,600.

When an electrical service upgrade is necessary

Today's homes run computers, smart devices, EV chargers, and hungry appliances that older systems can't handle. A 200-amp service is now standard for many homes to manage these demands safely.

• Insufficient amperage: Homes with 60-amp service or less are outdated and can't handle modern electrical loads.
• Adding major electrical loads: Installing an EV charger, hot tub, pool, or undergoing a major kitchen renovation will likely require more power than a 100-amp service can safely provide.
• Safety code compliance: Outdated systems with fuse boxes or old components often don't meet current safety codes, increasing fire risk and potentially causing issues with homeowner's insurance.
• Future-proofing for electrification: A 200-amp service prepares your home for future additions like heat pumps, induction cooktops, and electric vehicles. For more on home electrification, visit RewiringAmerica.org.
• Persistent electrical issues: Warning signs include flickering lights, frequent breaker trips, discolored outlets, or buzzing sounds from your panel.

Signs you only need a panel upgrade

Sometimes the issue isn't total capacity, but internal distribution. You might only need a panel upgrade if:

• You have sufficient service amperage: Your 100-amp or 150-amp service already meets your needs.

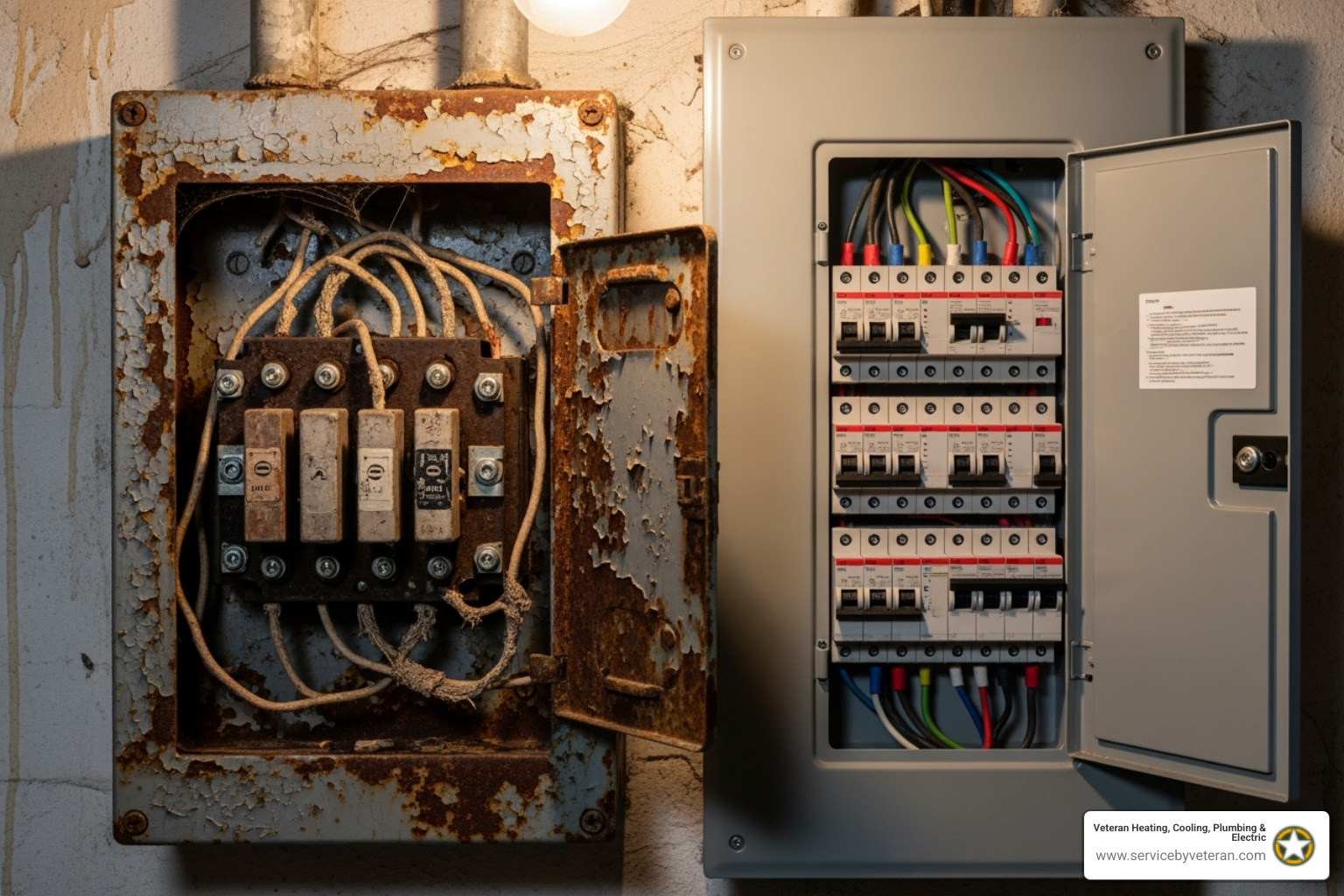

• Your panel is damaged or full: A corroded, outdated, or full panel needs replacing. Upgrading an old fuse box to a modern breaker panel is a major safety improvement.
• You want smart panel features: You want modern features like real-time energy monitoring and remote circuit control.
• You have breaker issues: Individual circuits constantly trip, but your overall service seems adequate.
• You're replacing a sub-panel: You're updating a specific area like a workshop and only need to replace a sub-panel.

A professional assessment and load calculation is crucial to determine the right solution for your home. Getting it right saves money and ensures your system is safe for years to come.

The Anatomy of an Electrical Service Upgrade

An electrical service upgrade is a coordinated effort between you, our electricians, and your local utility company. Understanding the components and process helps clarify what to expect.

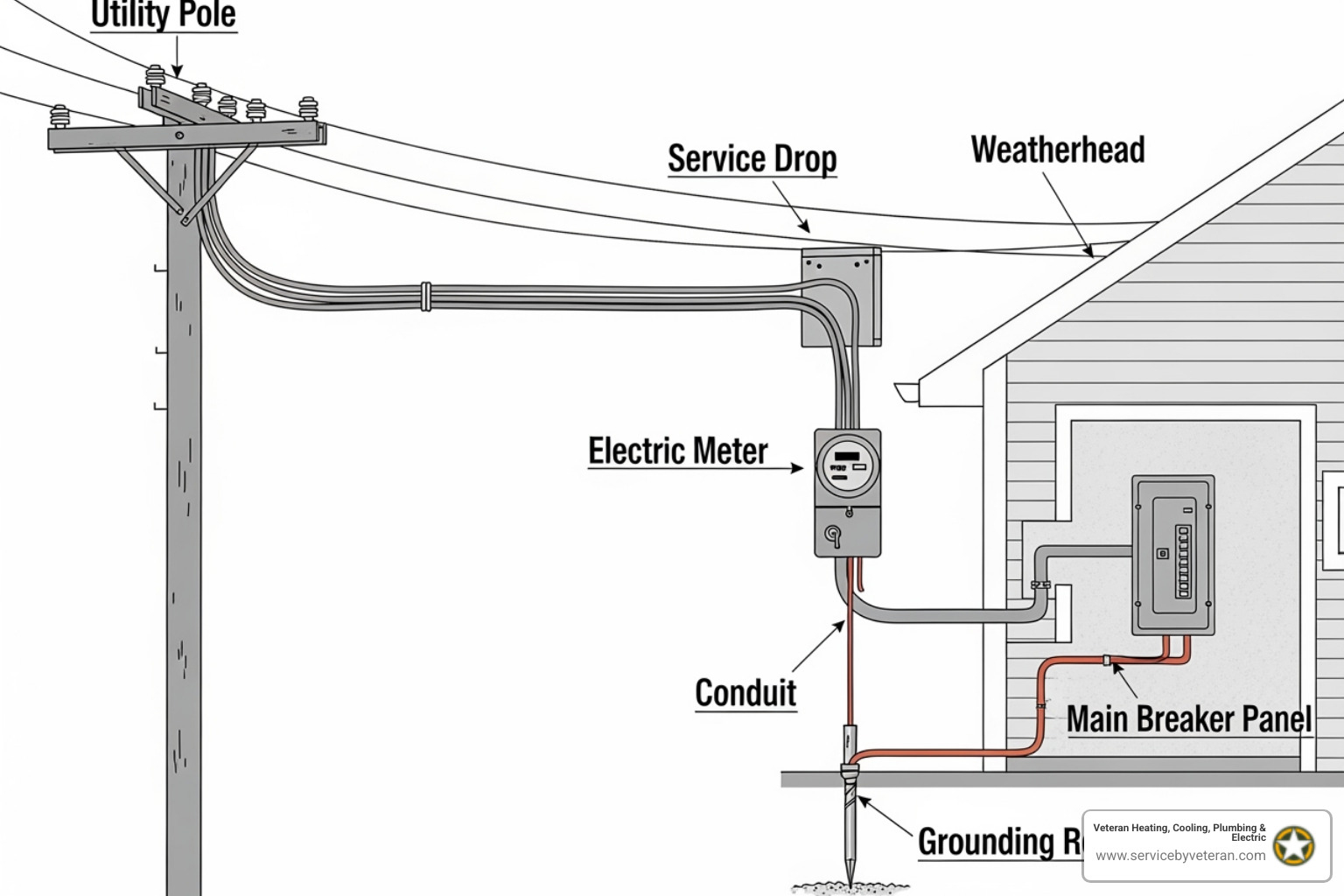

Key components of your electrical service

Each part of your electrical service plays a specific role in delivering power safely from the grid to your home.

• Service Entrance Conductors: These are the main wires from the utility line to your home. Their size determines your home's total amperage.
• Weatherhead and Service Mast: For overhead service, the weatherhead protects wiring from the elements, supported by the service mast.
• Electric Meter and Meter Base: The meter tracks your electricity usage. It sits in the meter base, which connects utility wires to your home's wiring. A new base is often needed for an upgrade.
• Main Breaker Panel: This is the distribution hub containing the main breaker (master switch) and individual circuit breakers for every part of your home.
• Grounding System: A critical safety feature, this network of wires connects your electrical system to the earth, protecting against surges and faults.

The step-by-step upgrade process

We manage every detail of your electrical service upgrade from start to finish.

1. Initial Consultation & Load Calculation: Our electrician assesses your current system and discusses future needs (like EV chargers) to perform a detailed load calculation, ensuring the right service size.
2. Permitting: We handle all necessary permits with your local authority, which is required to ensure the work meets safety codes.
3. Utility Coordination: We coordinate with your utility company for the power disconnection and reconnection. This requires advance scheduling, which we manage for you.
4. Upgrade Day: On upgrade day, the utility temporarily cuts power (usually for 6-7 hours) while our team replaces the old components: service wires, meter base, panel, and grounding system. You can learn more about our approach at our Electrical Installation Service page or see a technical overview.
5. Final Inspection & Reconnection: A city inspector must approve the new installation for safety and code compliance. Once approved, the utility restores permanent power.

Your team: The role of the utility company and safety authorities

An electrical service upgrade involves key partners to ensure safety and compliance.

• Utility Company: The utility is responsible for the power lines to your meter. They perform the main disconnect/reconnect and may need to upgrade their own equipment (like transformers) to support your increased capacity, which can add to the project cost.
• Electrical Safety Authority: Your local safety authority or building department issues permits and performs the final inspection to ensure all work complies with the latest electrical codes.
• Modern Code Requirements: Modern codes often require new safety features like external emergency disconnects for firefighters, whole-house surge protectors, and proper bonding of metal water pipes to the grounding system. These requirements improve safety and are part of a professional upgrade.

Decoding the Costs: What to Expect on Your Invoice

Understanding the cost of an electrical service upgrade is crucial. While every home is different, a standard upgrade typically costs between $2,000 and $6,000. Complex projects involving underground trenching or utility-side work can cost more.

Your final invoice generally includes:

• Labor costs: The majority of the cost, covering the expertise of licensed electricians.
• Material costs: For the new panel, wiring, meter base, and other components.
• Permit fees: Usually $100-$300 for mandatory safety inspections.
• Utility fees: Ranging from $300-$1,500 for their involvement.

This is a significant investment, which is why we offer flexible options on our Financing Page to make it more manageable.

Main factors that influence the cost of an electrical service upgrade

Several key factors affect the final price of an electrical service upgrade:

• Amperage Increase: Upgrading to 200 amps from 100 amps requires larger wires and a new panel.
• Service Type: Overhead service is typically less expensive than underground service, which may require costly trenching.
• Panel Location: A panel that is difficult to access or needs to be relocated will increase labor costs and may require drywall repair.
• Home's Age and Condition: Older homes may need additional work to meet current electrical codes.
• Utility Requirements: Your local utility may have specific requirements or need to upgrade their own equipment, impacting the cost.

We provide detailed, upfront estimates so you can budget accordingly with no surprises.

Decoding the Costs: What to Expect on Your Invoice

The first question on most homeowners' minds is cost. A typical electrical service upgrade ranges from $2,000 to $6,000. However, simple projects can be less, while complex jobs involving underground work can exceed $25,000. Most projects in the Denver, Lakewood, and Castle Rock area fall in the middle of this range.

Your final invoice is comprised of several parts:

• Labor costs: This is the largest portion, covering the expertise of licensed electricians ($65 to $130 per hour).
• Material costs: This includes the new panel, meter base ($200-$500), heavy-duty wiring ($6 to $10 per foot), and other components.
• Permit fees: Required by your municipality for safety compliance, typically $100 to $300.
• Utility fees: Charges from your utility for the disconnect/reconnect service, ranging from $300 and $1,500.
• Additional work: This can include drywall repair ($200-$1,000) or adding a whole-house surge protector ($300-$700).

An electrical service upgrade is a significant investment, which is why we offer flexible options on our Financing Page to help manage the cost.

Main factors that influence the cost of an electrical service upgrade

Several factors can dramatically impact your final cost:

• The amperage jump: Upgrading from 100-amp to 200-amp service is common. The cost difference is often only around $350, as the labor is nearly identical, making the 200-amp upgrade a wise investment for future-proofing.
• How power enters your home: Overhead service is typically less expensive ($4,500 and $6,000). Underground service is more complex and variable, ranging from $3,000 to over $20,000, as it may require trenching ($500 to $1,000+).
• Your panel's location and accessibility: A panel that is difficult to access or needs to be relocated will increase labor costs. Moving a panel can add $500 to $3,500 to the project, plus costs for any necessary drywall repair.
• Existing wiring condition: If existing internal wiring is outdated or damaged, it may need to be replaced at a cost of about $6 to $10 per foot.
• Utility company requirements: Your utility company may require upgrades to their own infrastructure, such as a new transformer, which can add $1,500 or more to the cost.

While the upfront cost is substantial, an electrical service upgrade is an investment in your home's safety, function, and value. We provide transparent estimates so you understand all charges.

Powering the Future: Benefits and Considerations

An electrical service upgrade is more than a fix—it's an investment in decades of safe, reliable power for your home. The benefits extend far beyond simply avoiding tripped breakers.

The benefits of upgrading to a 200-amp service

A 200-amp service transforms your home's electrical capability and your daily routine.

• Increased Electrical Capacity: A 200-amp service eliminates issues like dimming lights and allows you to run multiple high-demand appliances, like an EV charger and air conditioning, simultaneously without worry.

• Improved Safety: Upgrading replaces outdated, overloaded components with modern, code-compliant equipment, significantly reducing the risk of electrical fires.
• Protection for Electronics: A stable 200-amp service provides consistent power, protecting sensitive electronics like computers and smart TVs from damaging voltage fluctuations.
• Increased Property Value: An updated electrical system is a major selling point for homebuyers, signaling a safe, modern home and increasing your property's value.
• Future-Proofing: A 200-amp service prepares your home for future electrification, including EVs and heat pumps. The small additional cost over a 100-amp upgrade is a smart long-term investment.
• Peace of Mind: Enjoy the confidence that comes with a safe, reliable electrical system. Consider our Maintenance Plans to keep it in top condition.

Potential downsides and how to manage them

While the benefits are clear, it's important to consider the whole picture.

• The Initial Investment: The cost can be significant, but we offer transparent pricing and flexible options on our Financing Page to make this essential safety upgrade affordable.
• The Temporary Power Outage: Expect a planned power outage of 6-7 hours on upgrade day. We work with you to minimize disruption and can provide temporary power for essential appliances.
• Scheduling Coordination: Coordinating with utilities and inspectors takes time, but our team handles all scheduling and paperwork to ensure a smooth process.
• Unexpected Repairs: In older homes, unexpected issues like outdated wiring may arise. Our initial assessment aims to identify these upfront to avoid surprises.

The temporary inconveniences are minor compared to the decades of safety and reliability you'll gain.

Frequently Asked Questions about Electrical Service Upgrades

It's normal to have questions before making a major home investment. Here are answers to the most common concerns about an electrical service upgrade.

How long will my home be without power during the upgrade?

For a typical 200-amp upgrade, expect a planned power outage of about 6-7 hours. We schedule this during the day and can arrange temporary power for essential items like your refrigerator to minimize inconvenience.

Why does the electrician need to know where my water meter is?

This is for grounding and bonding. Electrical code requires that metal water pipes be bonded to your home's grounding system. This critical safety feature prevents your pipes from becoming energized during an electrical fault, protecting your family from electrocution.

Can I electrify my home without a major service upgrade?

It's sometimes possible on a 100-amp or 150-amp service, but it requires careful planning. This involves a detailed load calculation, choosing energy-efficient appliances, and using smart devices like circuit-sharing EV chargers. However, for homes with less than 100-amp service or for homeowners wanting maximum flexibility, a full electrical service upgrade is the most reliable long-term solution.

Your Next Step to a Safer, More Powerful Home

You now understand the process, costs, and significant benefits of an electrical service upgrade. This isn't just about convenience; it's a crucial investment in your family's safety and your home's future value. A modern 200-amp service provides peace of mind and prepares your home for the demands of tomorrow, from EV chargers to smart home technology.

At Veteran Heating, Cooling, Plumbing & Electric, we bring a military-honed commitment to precision and safety to every job. We make the complex process simple by handling all permits and utility coordination throughout the Denver metro area, including Lakewood, Aurora, and Castle Rock. We stand behind our work with transparent pricing, a lifetime warranty, and a money-back guarantee.

Ready to take the next step? Schedule a consultation with our team. We'll provide a clear, detailed quote for what your home needs. Visit Our Services to learn more and contact us today for a safer, more powerful home.
